Technical Specs
The Gladiator has top of the line components throughout, this list is for the bike nerds that want to know every technical detail.
Chassis
| Frame | Designed by Superhuman with Internal Cable Routing Manufactured by JiuLun, 6061 Aluminum Alloy Tubes, Smooth Welds |
| Rear Axle | M10x175 mm Spacing Solid Hub Motor Axle Dropout with Inner Disc Brake Mount |
| Headset | Semi Interagrated, Tapered Design Headset ZS44/28.6 (1-1/8”) Top Bearing ZS56/39.8 (1-1/2”) Bottom Bearing |
| Fork | RST GUIDE-26 Spring Suspension 95 mm of Front Wheel Travel M10x135mm Thru Axle Spacing |
Cockpit
| Seat | Zoom SP-C261 AL-Alloy, 300mm Seatpost Superhuman Branded Velo, VL-1205 Active Saddle Promax 319Q Ø38.1mm QR Seat Clamp |
| Handles | Zoom Al-Alloy, 780 mm width, Rise Handlebar Zoom Aluminum, 60 mm Length 15° Stem Velo Flat Rubber Grips with Lockers |
| Remotes | KingMeter SW-LCD Superhuman Branded Display Advanced Pedal Assist mode Shimano Acera 8-Speed Shifter |
| Brakes | Tektro MD-M300 Aries Mechanical Disc Two Finger Levers Two Piston Calipers with 203 mm Rotors |
Drivetrain
| Motor | Bafang G060 Hub-Motor, 750W Nom Power 850W Peak Power, 85 Nm Torque LiShui Brushless, 6V Light Output Controller |
| Battery | 48V, 10.5 AH/13.5AH Lithium Ion Cells (500/650WH) LED Capacity Indicator Security Key Lock |
| Crankset | GineYea BB96-120, 78mm Bottom Bracket Prowheel PRO-E44P Crankset, 170 mm Crank 44T Chainring, 104 mm BCD Spider |
| Chainline | Shimano Acera 8-Speed Derailleur Shimano Acera, 12-32T 8-Speed Cassette KMC Z8.1 8-Speed Silver Chain |
Wheels
| Hubs | JoyTech D301DSE M10x135mm Front Hub Bafang M10x175 mm Rear Hub Motor Shimano HG Standard Freewheel |
| Rims | Powerwheel P75, 26”*4.0” AL-Allow Rims HaiCheng 36 Spoke Holes. AL Eyelets 559 x 101.6 mm Rim Dimensions |
| Spokes | Front: 13GX256mm Stainless Steel Spokes Rear: 12GX204mm Stainless Steel Spokes Black with Brass External Nipples |
| Tires | Kenda K1151 Juggernaut, 24” x 4” Tires Kenda AV28mm Tubes 50-85 PSI, 3.5-5.9 BAR, Schrader Valve |

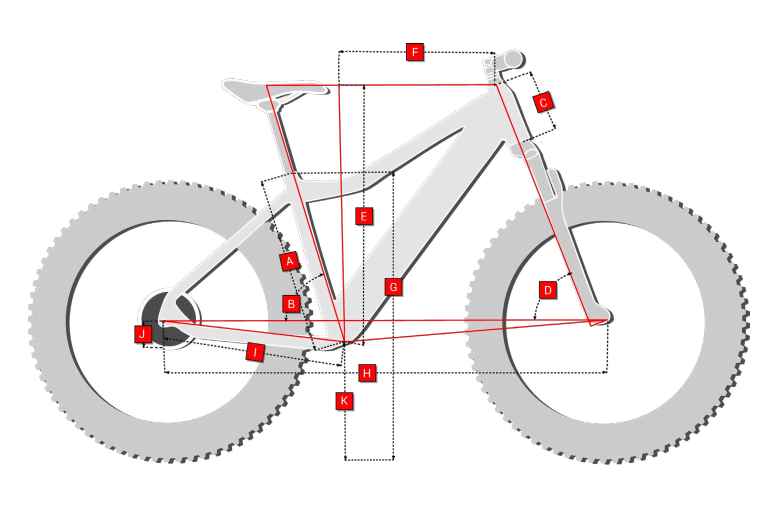

Geometry
Gladiator - Size L
| A. Seat Tube Length | 19 Inches (480 mm) |
| B. Seat Tube Angle | 73.5° |
| C. Head Tube Length | 6 1/2 Inches (165 mm) |
| D. Head Tube Angle | 69° |
| E. Stack | 27.4 Inches (696 mm) |
| F. Reach | 16 1/3 Inches (415 mm) |
| G. Standover Height | 30 1/3 Inches (770 mm) |
| H. Wheelbase | 46.8 Inches (1190 mm) |
| I. Chainstay Length | 18 1/3 Inches (465 mm) |
| J. Bottom Bracket Drop | 2 1/2 Inches (65 mm) |
| K. Bottom Bracket Height | 12.8 Inches (325 mm) |
Other Dimensions
| Fork Height | 525 mm |
| Fork Rate | 43 mm |
| Seat Post Insert | min 100 mm - max 200 mm |
| Seat post diameter | 31.6 mm |
| Headset spacer | 2*10 mm |
| Stem length | 60 mm |
| Stem angle | 15° |
| Handlebar Diameter | 31.8 mm |
| Handlebar Width | 780 mm |
| Cranklength | 170 mm |
| Wheel size | 26” x 4” |
| Wheel radius | 395 mm |
